Baofeng UV-5R Two way Radio 5W VHF UHF FM Transceiver Ham Walkie Talkie

  • $49.99



Baofeng UV-5R Two way Radio 5W VHF UHF FM Transceiver Ham Walkie Talkie


About Baofeng UV-5R

- FCC ID: 2AJGM-UV5R -

- The Baofeng UV-5R is a compact hand held radio scanner transceiver providing 4 watts in the frequency range of 136-174/400-480 MHz. It is a compact, economical HT that includes a special VHF receive band from 65-108 MHz which includes the regular FM broadcast band. Dual watch and dual reception is supported.



- Other features include: selectable wide/narrow, battery save function, VOX, DCS/CTCSS encode, key lock and built in flashlight. Selectable frequency steps include: 2.5, 5, 6.25, 10, 12.5 and 25 kHz. omes with ANT5 SMA-J flexible antenna, BL-5 Li-ion battery (7.4V 1800 mAh), belt clip, wrist strap, AC adapter and drop-in charging tray.



Main Function

Dual-Band Display, Dual Freq. Display, Dual-Standby

128 channels

FM Function

1800mAh Li-ion battery

50 CTCSS/105 CDCSS

VOX Function

Tri-color background light selectable

PC Programming

Emergency Alarm

Shortcut menu operation mode

Battery Save

High/Low TX power selectable

Time-out Timer

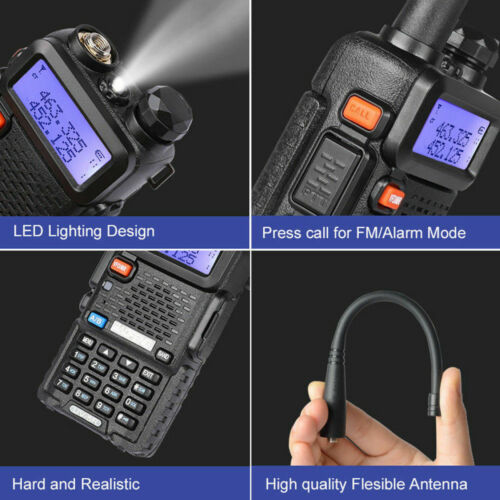

Flashlight

A/B band independent operation



Specifications

Output: 4W/1W

Channel: 128

Frequency stability: ± 2.5ppm

Antenna: Dual band High Gain antenna

Antenna impedance: 50Ω

Operating voltage: DC 7.4V

Wide/Narrow Band(25kHz/12.5kHz)

Weight: 500g (including battery, antenna)





General

Frequency Range

VHF

UHF

Channel No.

128

Frequency Stability

±2.5ppm

Antenna

High gain Dual-Band Antenna

Antenna Impedance

50Ω

Operating Voltage

DC 7.4V

Mode of operation

Simple or semi-duplex

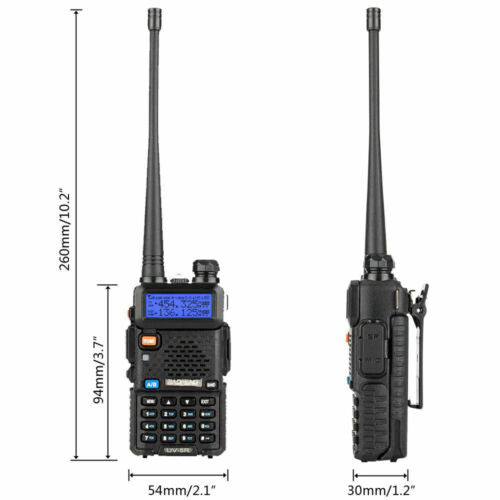

DimensionW x H x D

100 x 51 x 32 mm

Weight

250g including battery, antenna

Transmitter

Output power

4W / 1W (Max 5W)

Modulation Mode

16kΦF3E / 11kΦF3E

Maximum deviation

5kHz(Wide) / 2.5kHz(Narrow)

Spurious Radiation

7μW

Adjacent Ch. power

≤-65dB(Wide) / ≤-60dB(Narrow)

Pre-emphasis characteristics

6dB

Current

≤1.6A(5W)

CTCSS/DCS deviation

0.5±0.1kHz(Wide) / 0.3±0.1kHz(Narrow)

Intermediation sensitivity

8-12mv

Intermediation distortion

10

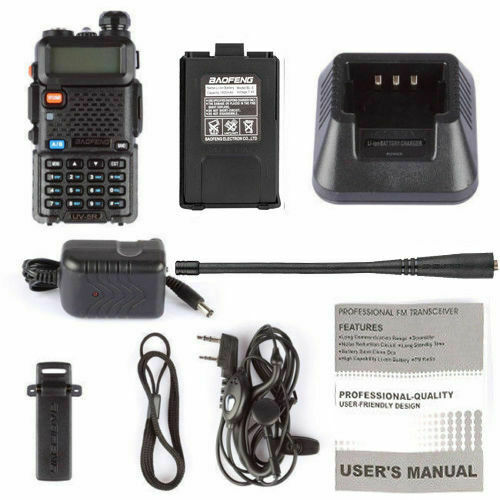

Package

1 x BaoFeng UV-5R Walkie Talkie

1 x Li-ion battery

1 x Antenna

1 x Headset

1 x Belt clip

1 x Hand strap

1 x User manual

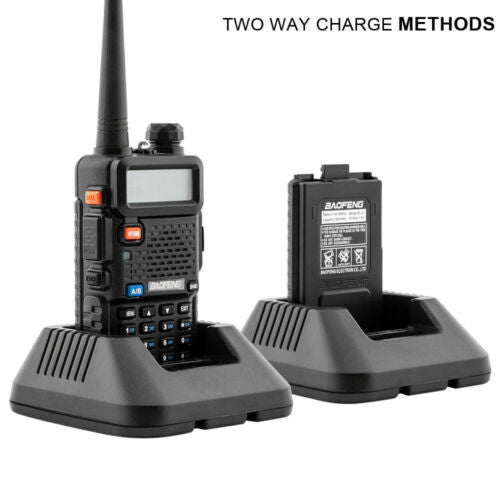

1 x Desktop Charger
